REISEN MAG DRILLS
Thinking Inside AND Outside The Box
RIESEN - TAKING A DIFFERENT APPROACH
Why do Wolfmach Recommend These Drills?
We looked long & hard at the mag drill offerings from other companies and we got the feeling that most manufacturers design to a price point rather than a vision of the user's needs.
We think NZ users deserve better, and we made it our mission to source machines that meet the demands of our industry. Countries with much greater population density may have the luxury of widely available repair shops, but our customers need machines they can always rely on.
We needed a manufacturer that employed some radical design thinking behind their products.
So we went out and found one.
At the heart of all Reisen mag drills is the patented Twin Rail Slide System, a novel way of creating the movement essential to the operation of these machines that offers huge advantages over the traditional dovetail method.
This improved method delivers significant benefits from up to TEN TIMES better stability than dovetail systems:
- Reduced cutter breakage
- Retention of cutter sharpness for longer
- Improved hole quality, accuracy & tolerance
The slide has NO CONTACT with the drill body, resulting in:
- Greatly reduced friction stresses
- Reduced wear
- Less maintenance & downtime
We also found that the great majority of the mag drill brands out there do not manufacture their machines themselves, and some just rebrand them. Many have their drills made in outlying factories where the costs are lower. Of course, we love a cost reduction, but with most of these production facilities in Asia or other low-wage regions, the difficulties in controlling quality and supply were not worth the risk.
All our drills are made in the UK manufacturer's own facility, and are powered by the highly respected German-made Eibenstock motors for excellent reliability.

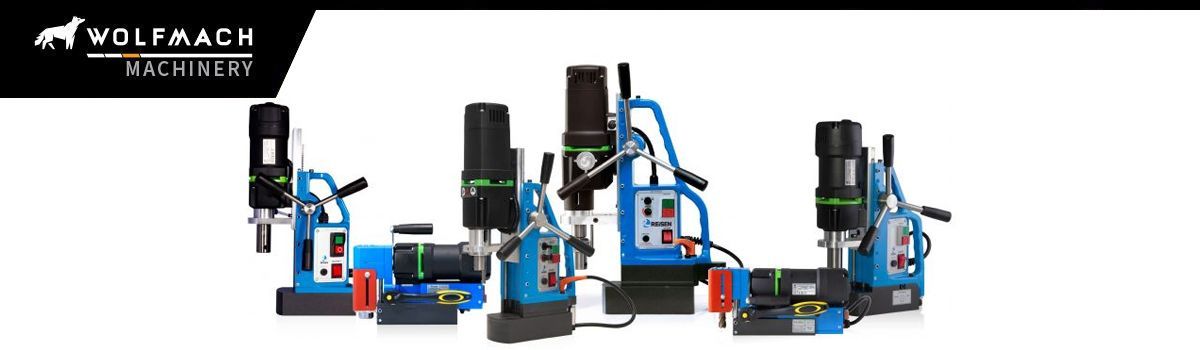

THE REISEN MAG DRILL RANGE

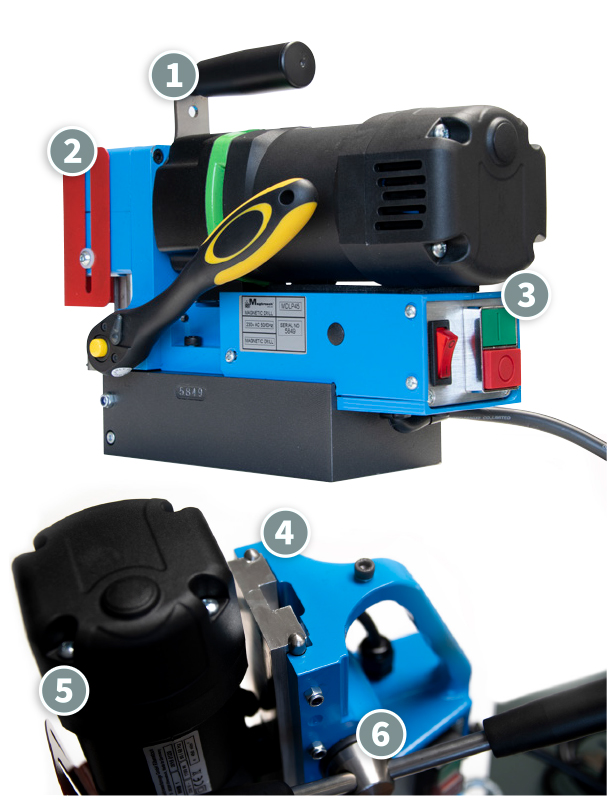

Why Choose a Reisen Mag Drill?
Mag based drills are widely available from many manufacturers, and prices can vary considerably, so why would you buy a Reisen?
It’s Wolfmach's stated mission to bring our customers the best from their spend on tools, and we believe Reisen machines genuinely do provide the best available return on investment.
What makes us so sure of this?
1 Clever design features ensure each model is packed with practicality to get the most out of your machine.
2 Integrated safety features to keep your machines and employees safe & productive.
3 Ease-of operation through ergonomic design and industrial-spec componentry.
4 A patented twin-rail slide system is used on all models, with significant advantages over the standard dovetail technology used by almost all other manufacturers.
5 Every model uses a German-made Eibenstock motor, internationally recognised and arguably the most reliable Mag Drill motors on the planet.
6 Durable precision pinion & handle sets on all upright models for accurate & consistent feed pressure.
And don't forget, every model uses the patented slide-rail carriage proven to increase stability by up to 10x that of dovetail systems. Reisen mag drills are designed from the outset to outperform other drills and improve your workshop efficiency.
Each Reisen mag drill model is described below, but if you just want to compare the dills in the range at a glance, CLICK HERE to go straight to the easy selection guide.
THE REISEN MAG DRILL RANGE

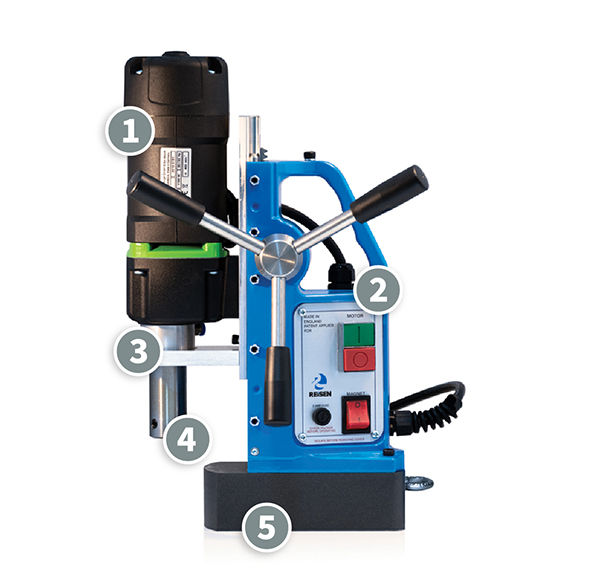

Why Choose the DMMAG38?
Despite being the entry-level model, the DMMAG38 is still capable of exceeding most consumers' expectations.
An ideal choice for most typical NZ users who don't need to pay for the capacity and features of a bigger machine, or for users who regularly have to haul the gear up and down to work at height and prefer a lighter model.
1 1100 watt Eibenstock motor.
2 Compact, ergonomic design & only 12kg weight for maximum usability onsite
3 Internal coolant through arbor.
4 170mm stroke & Ø38mm cutter capacity.
5 1 Tonne of magnetic force.
+ Durable precision pinion & handle set for accurate & consistent feed pressure.
THE REISEN MAG DRILL RANGE

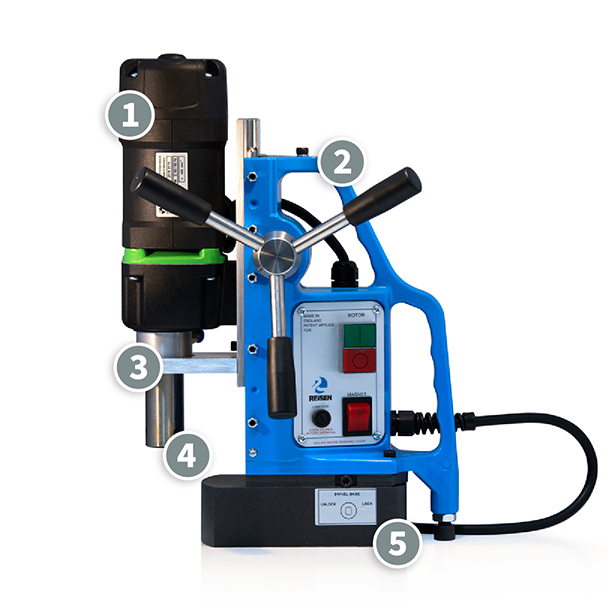

Why Choose the DMMAG40S?
The DMMAG40S is the most affordable swivel-base model in our range bringing the extra versatility of a rotating magnetic foot and also offers a useful increase in capability over the smaller model.
A favourite amongst users who need a little more flexibility from their machine, the swivelling base and twin-handle body casting make this a very usable machine for all but the most demanding operators.
Entry-level swivel model, ideal for small to medium users needing the flexibilty of a swivelling base.
1 1100 watt Eibenstock motor.
2 Twin-handle body casting for improved on-site handling.
3 Internal coolant through arbor.
4 180mm stroke & Ø40mm cutter capacity.
5 1100kg of magnetic force
+ Durable precision pinion & handle sets for accurate & consistent feed pressure.
THE REISEN MAG DRILL RANGE

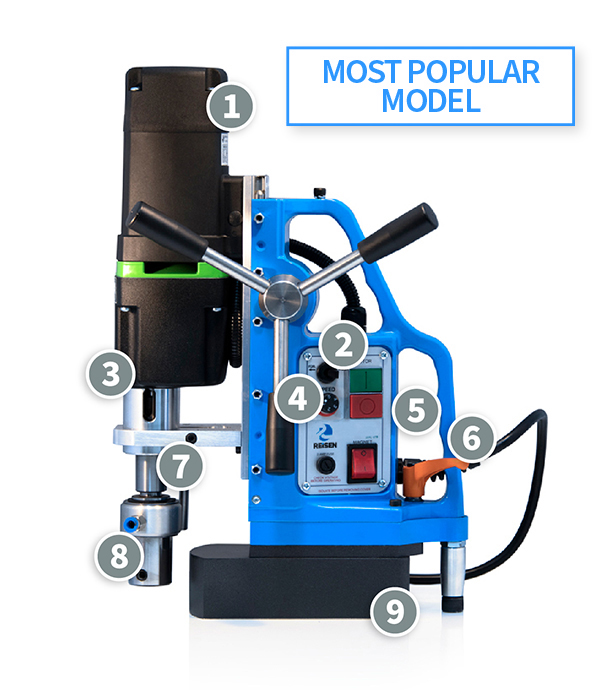

Why Choose the DMMAG55ST?
Our best-selling mag drill, the DMMAG55ST combines a practical swivelling base with tapping capability up to 20mm for great all-round usability.
Provides a perfect balance between performance and cost, with excellent on-the-job handling. Very well suited to, and a real benefit for, the more progressive operators who like to take on jobs others have to leave alone.
Entry-level tapping model, ideally suited to users needing more power & capacity than the basic models and provides a swivelling & shifting base. Also provides motor overload protection.
1 Powerful 1250 watt Eibenstock reversible motor.
2 Reversing switch.
3 195mm stroke & Ø55mm cutter capacity.
4 Variable speed control.
5 Motor overload protection.
6 Secure & simple swivel lock lever.
7 Internal coolant through arbor.
8 Tapping from Ø6 tapping to Ø20mm.
9 1250kg of magnetic force for tapping torque resistance
+ Durable precision pinion & handle sets for accurate & consistent feed pressure.
THE REISEN MAG DRILL RANGE

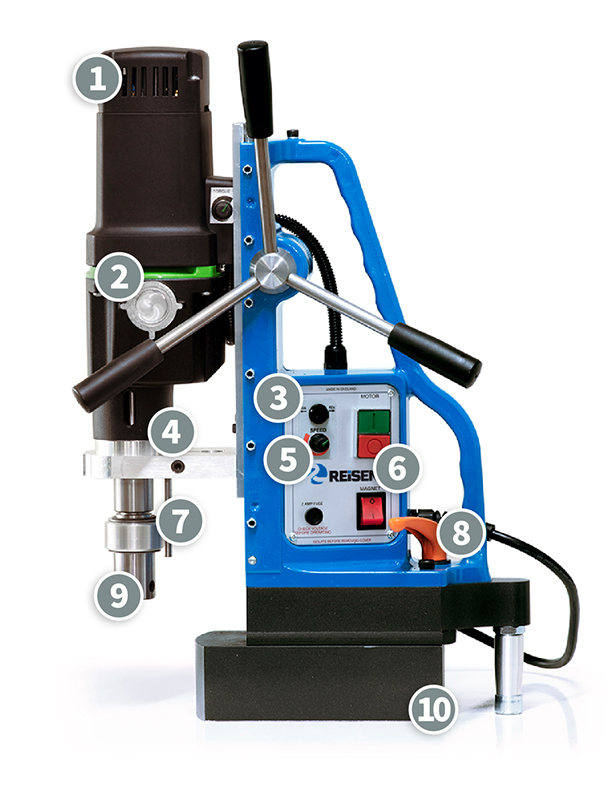

Why Choose the DMMAG100ST?
The biggest machine in our standard range, the DMMAG100ST is a serious piece of machinery made for serious work.
Capable of running cutters to 100mm diameter and tapping up to 30mm, this mag drill will tackle the heavy industrial work that leaves lesser machines smoking in the corner of the workshop. 1800 watts of power with motor overload cut-out and a friction clutch, almost 300mm of stroke depth and over 2 tonnes of magnetic power make this the perfect choice for the top-end operators looking to take on the most challenging projects.
Fully-featured flagship model offering huge capacity and power, with motor overload protection and a friction clutch.
1 Huge 1800 watt Eibenstock reversible motor.
2 Mechanical friction clutch.
3 Reversing switch.
4 295mm stroke and Ø100mm/250mm depth cutter capacity.
5 Variable speed control.
6 Motor overload protection.
7 Internal coolant through arbor.
8 Secure & simple swivel lock lever.
9 Tapping from Ø6 tapping to Ø30mm.
10 2050kg of magnetic force for ultimate torque resistance
+ Durable precision pinion & handle sets for accurate & consistent feed pressure.
THE REISEN MAG DRILL RANGE

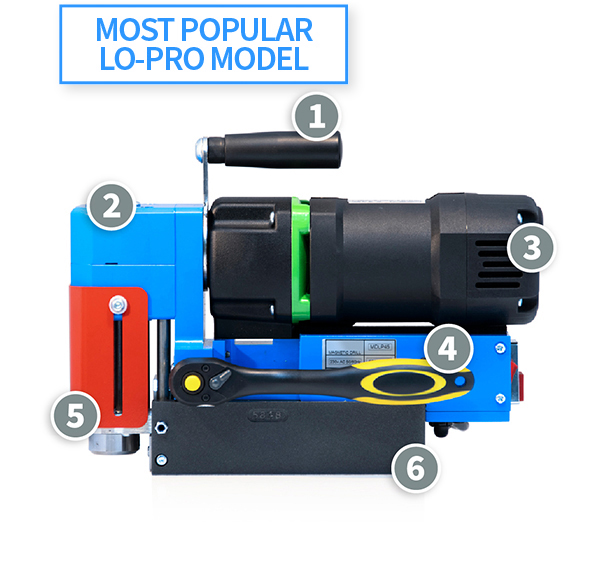

Why Choose the DMMAG45LP?
When you need to work in tight spots that a typical upright mag drill can't get in to, the DMMAG45LP is a low-profile machine that still features all the benefits of the twin rail slide system, Eibenstock motor and build quality that make the range so well suited to our industry.
Only 178mm over the cutter and capable of running cutters up to 45mm diameter/55mm deep, this model is a great choice for those who need the access benefits of a low-profile machine but still need the power & capacity for light-medium GP work.
Entry-level Low Profile model, provides 1100kg of adhesive force, capable of accomodating standard 55mm deep cutters and comes with the patented sliderail system for improved accuracy & durability.
1 Stowable handle.
2 178mm clearance over cutter.
3 1100 watt Eibenstock motor.
4 Reversible ratchet feed handle.
5 Cutter capacity up to Ø45 & 55mm deep, uses standard (non-proprietary) cutters.
6 1100kg of magnetic force.
+ Durable precision pinion & handle sets for accurate & consistent feed pressure.
THE REISEN MAG DRILL RANGE

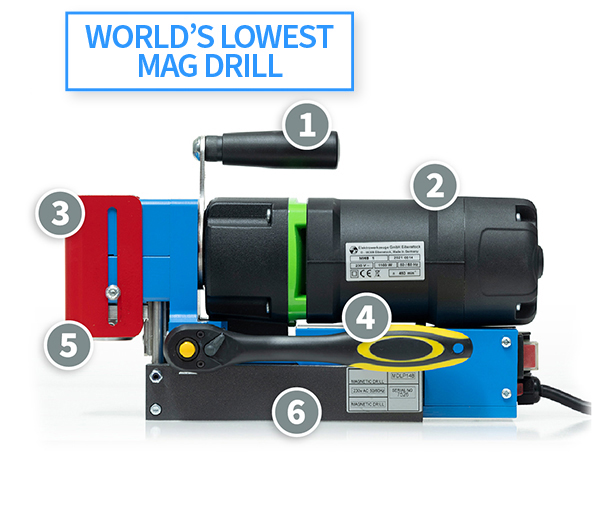

Why Choose the DMMAG48XLP?
Nothing matters more in a low profile mag drill than how low you can go, and it doesn't get any lower than this.
A world-beating 148mm high but still packing an 1100 watt Eibenstock motor and delivering a full tonne of magnetic adhesion, this is the must-have machine for drilling in less than 180mm headroom, and it's the only one in the world capable of getting the job done in less than 150mm. This makes the DMMAG48XLP the perfect choice for operators who need to be able to do the tight-space work that nobody else can touch.
The lowest Low-Profile mag drill in the world, also offers up to 48mm diameter cutter capacity (using standard, non-proprietary) cutters, and despite extra-low-profile performance it still the comes with the patented slide-rail system for improved accuracy & durability.
1 Stowable handle.
2 1100 watt Eibenstock motor.
3 World's lowest at just 148mm high (over 20% lower than the DMMA45LP).
4 Reversible ratchet feed handle.
5 Cutter capacity up to Ø40mm & takes standard cutters, does not require expensive proprietary tools!
6 1 Tonne of magnetic force.
+ Durable precision pinion & handle sets for accurate & consistent feed pressure.
THE REISEN MAG DRILL RANGE

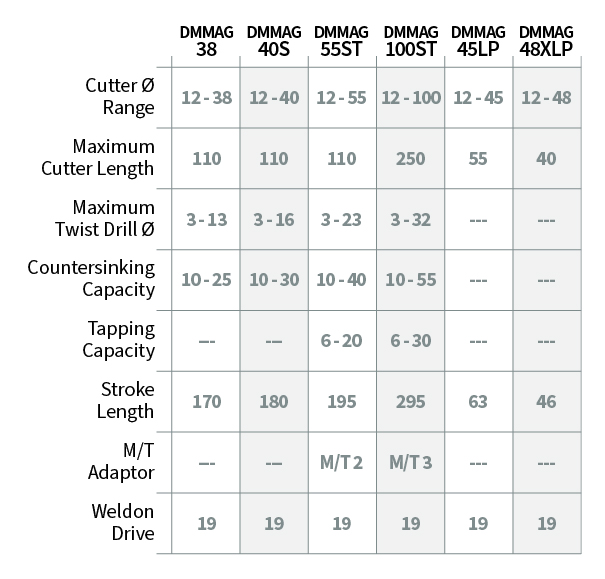

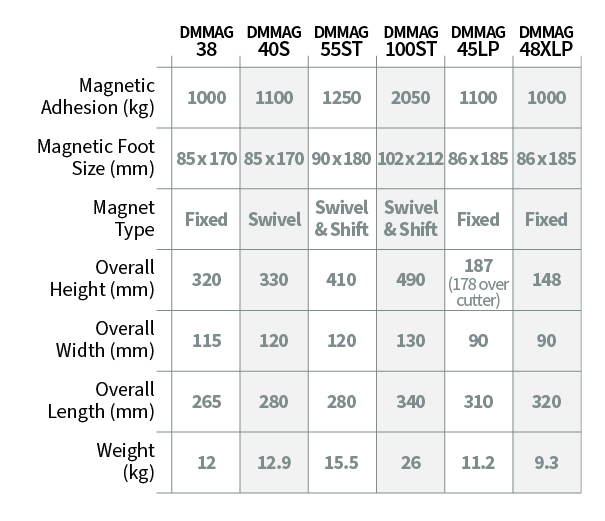

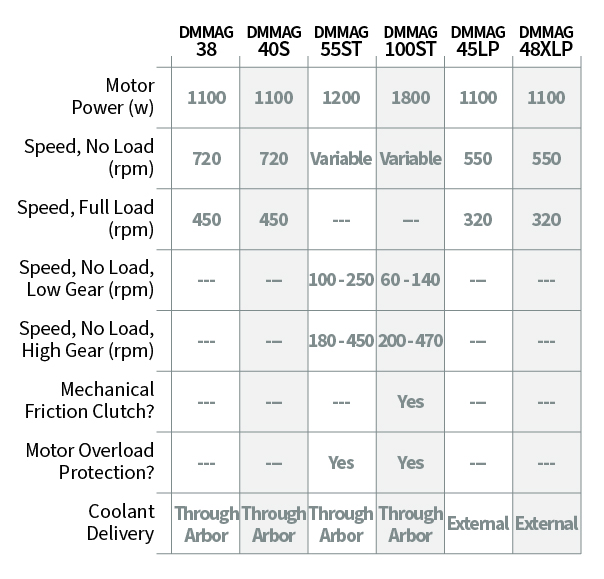

How To Select The Best Machine For Your Requirements - Comparison Charts
